DE100

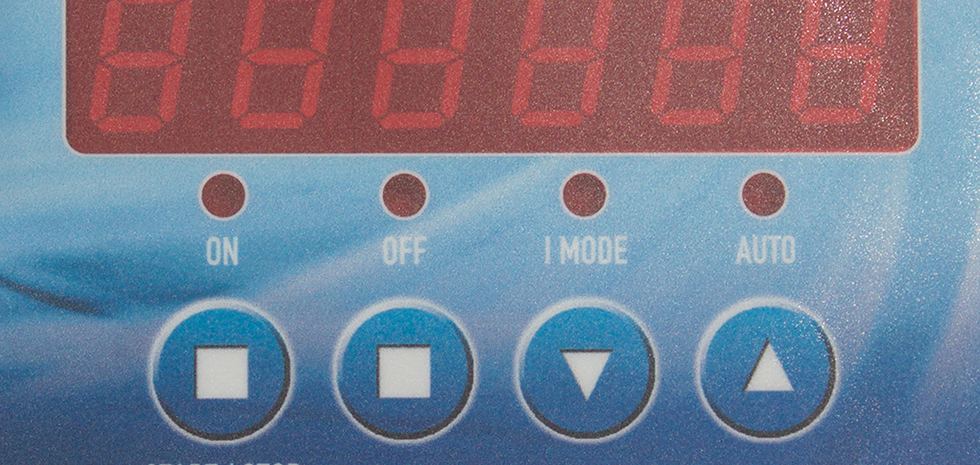

This control device runs the main rectifier functions. It is made in a standard 96x96 holder and is particularly suitable for installation both on-board the machine and in the panel. All the pushbuttons can be remote controlled. A very simple layout, together with an easy program and the high luminosity display, were selected on purpose to help the operator.

INSTRUMENTS AND CONNECTIONS

INSTRUMENTS AND CONNECTIONS




Technical Data

DE100
Turning on/off the rectifier
X
Voltmeter, Anmeter, Set V/I
X
Stabilisation selection
X
Timer
X
Partial and total Ampere minutes
X
Partial and total Ampere minutes reset
X
Function doser pumps
X
Ramp
X
Process time
X
Modules temperature
X
Currents supplied modules
X
Address
X
End of scale display
X
Local/Auto operation set
X
Serial number rectifier
X
Alarm management
X
Reverse polarity
X
Pulse mode
X
Minimum voltage and current alarm
X
Water rectifiers solenoid valve control
X
Password enter extra functions
X
Ampere minute meter scale
X
Wiew / hide menu auto / local
X
Pumps
X
End of cycle function
X
Derating
X
Modbus RTU
X
Type of protocol
X
IP address setting
X
Profinet
X
Test485
X
Restart after power failure
X
Minimum threshold
X
Dual limit
X
Dual limit stop
X
Managing access with user and password
X


Wiew / hide menu auto / local

DE100
Pumps
 X
End of cycle function
 X
Derating
 X
Modbus RTU
 X
Type of protocol
 X
