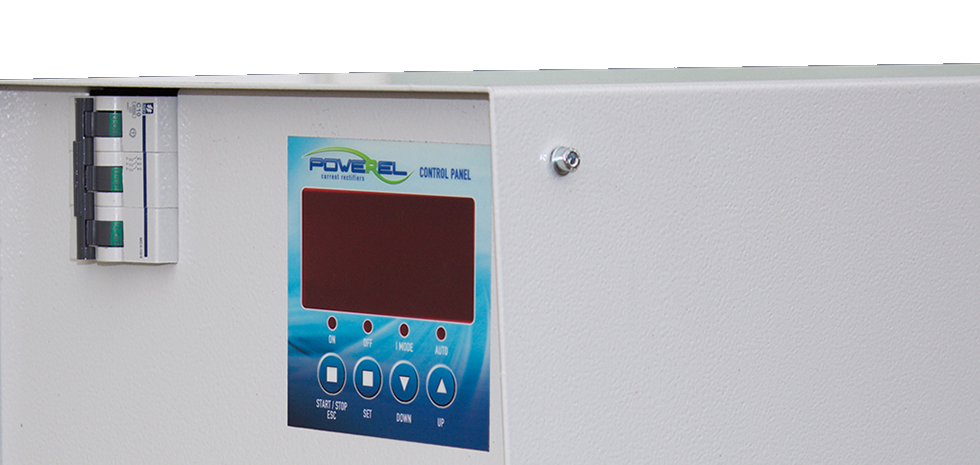

Three-phase switching rectifiers that enclose in a small space large powers with various configurations at the customer’s request, efficiency among the higest, power up to 10 kW, currents up to 600A and voltages up to 100V. The current supplied, thanks to hard reactances on output, allows to obtain a very low ripple in all load conditions. The power parts are separated from the electronics to ensure longer life of the card. The instrument includes (DE100 or DE200) all the functions of the rectifier as well as timer, ampertime meter, management of dosing pumps and fault diagnosis that facilitates the maintenance technician.
Technical Data
| Supply | Threephase 400 VAC without neutral |
| Current supplied | Max 600 A |
| Voltage supplied | Max 400 V |
| Standard efficiency | 85% |
| Maximum efficiency | 88% |
| Range power adjustment | 2% ÷ 100% |
| Ripple | <= 2% (<1% on demand) |
| Dielectric insulation | 2500V AC 60" |
| Serial connection | Profinet, Profibus, Canopen, RS485 ASCII, RS485, Modbus-RTU, 0-10V, 0-20mA, 4-20mA |
| Max environment themperature | 40° C |
| Maximum Humidity |
 85% 90%
|
| Protection and maintenance | Short circuit, over temperature, electronic cards tropicalisation, epoxy painted or zinc plated metal parts, air filters, electronics part protection. |
| Protection grade | IP41 |
| Cooling |
Air forced Water |
| Integrated elettronics | All module electronics are grouped into a single cards. |

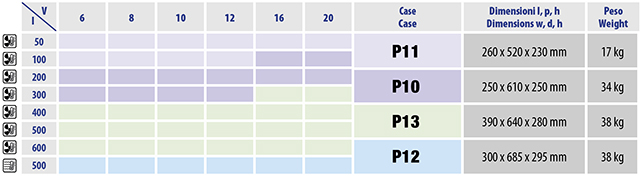

Weight and Dimensions
| From | To |  |
Case | Dimensions w, d, h | Weight |
|---|---|---|---|---|---|
| 50 A - 6 V | 100 A - 12 V | |

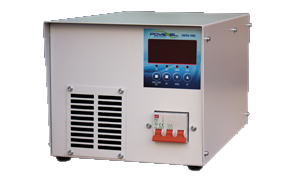

P11 | 260 x 500 x 230 mm | 17 kg |
| 100 A - 16 V | 300 A - 12 V | |
P10 | 250 x 585 x 250 mm | 34 kg |
| 300 A - 16 V | 600 A - 12 V | |
P13 | 280 x 610 x 387 mm | 38 kg |
| 500 A - 6 V | 500 A - 20 V | |
P12 | 300 x 680 x 300 mm | 38 kg |
(Example of configurations, other solutions available)
