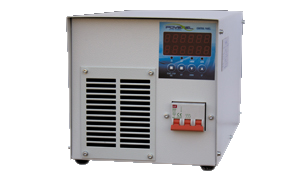

Case P10

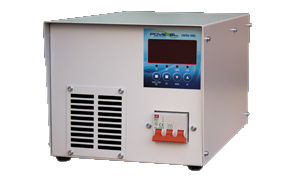

Case P11




Technical Data

Supply Single phase 230 VAC
Current supplied Max 200 A
Voltage supplied Max 20 V
Standard efficiency 82%
Maximum efficiency 88%
Range power adjustment 2% ÷ 100%
Ripple <= 2% (<1% on demand)
Dielectric insulation 2500V AC 60"
Serial connection Profinet, Profibus, Canopen, RS485 ASCII, RS485, Modbus-RTU, 0-10V, 0-20mA, 4-20mA
Max environment themperature 40° C
Maximum Humidity 85%
Protection and maintenance Short circuit, over temperature, electronic cards tropicalisation, epoxy painted or zinc plated metal parts, air filters, electronics part protection.
Protection grade IP41
Cooling Air forced
Integrated elettronics All module electronics are grouped into a single cards.

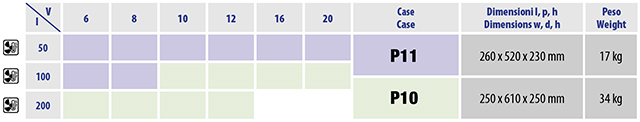

Weight and Dimensions

From To Case Dimensions w, d, h Weight
20 A - 6 V 100 A - 8 V P11 260 x 500 x 230 mm 17 kg
100 A - 10 V 200 A - 12 V P10 250 x 585 x 250 mm 34 kg

(Example of configurations, other solutions available)
