This is a special type of rectifier requested by the market and purposely designed for use where better metal deposit in difficult points is requested.
The work cycle repeats a square wave shape for a certain period of time.
Minimum resolution for the time sizes is 1 millisecond.
Rectifiers with inverse pulsed current can be realized using the inversion module.
Application is focused on the printed board industry where better hole metallization is required, and on the fashion industry where better luster of the manufactured article, which can be obtained using pulsed current, is requested.




Technical Data

Specific settings pulsed currents
Set current or voltage 0 ÷ 100%
Set time period 65000 mS
Range first period 0 ÷ 64999 mS
Minimum resolution period 1 mS

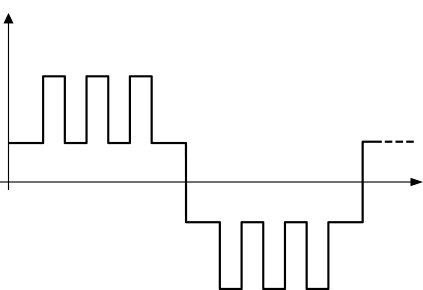

WORKING DIAGRAM


Weight and Dimensions

From To Case Dimensions w, d, h Weight
50 A - 6 V 100 A - 12 V P11 260 x 500 x 230 mm 17 kg
100 A - 16 V 300 A - 12 V P10 250 x 585 x 250 mm 34 kg

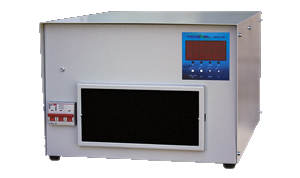

300 A - 16 V 600 A - 12 V P13 280 x 610 x 387 mm 38 kg

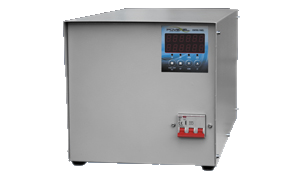

500 A - 6 V 500 A - 20 V P12 300 x 680 x 300 mm 38 kg

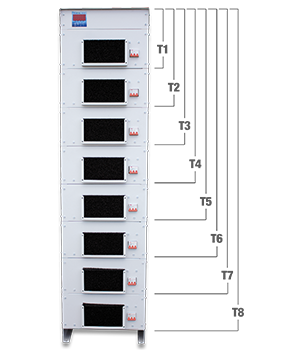

1000 A - 8 V 300 A - 60 V T1 545 x 715 x 460 mm 84 kg
2000 A - 8 V 600 A - 60 V T2 545 x 715 x 700 mm 138 kg
3000 A - 8 V 900 A - 60 V T3 545 x 715 x 940 mm 192 kg
4000 A - 8 V 1200 A - 60 V T4 545 x 715 x 1180 mm 246 kg
5000 A - 8 V 1500 A - 60 V T5 545 x 715 x 1420 mm 300 kg
6000 A - 8 V 1800 A - 60 V T6 545 x 715 x 1660 mm 345 kg
7000 A - 8 V 2100 A - 60 V T7 545 x 715 x 1900 mm 408 kg
8000 A - 8 V 2400 A - 60 V T8 545 x 715 x 2140 mm 462 kg
9000 A - 8 V 2700 A - 60 V T9 545 x 715 x 2380 mm 516 kg
10000 A - 8 V 3000 A - 60 V T10 545 x 715 x 2620 mm 570 kg
1250 A - 8 V 350 A - 60 V W1 600 x 730 x 750 mm 165 kg
2500 A - 8 V 700 A - 60 V W2 600 x 730 x 1000 mm 225 kg
3750 A - 8 V 1050 A - 60 V W3 600 x 730 x 1250 mm 285 kg
5000 A - 8 V 1400 A - 60 V W4 600 x 730 x 1500 mm 360 kg
6250 A - 8 V 1750 A - 60 V W5 600 x 730 x 1750 mm 435 kg
7500 A - 8 V 2100 A - 60 V W6 600 x 730 x 2000 mm 525 kg
8750 A - 8 V 2450 A - 60 V W7 600 x 730 x 2250 mm 615 kg
10000 A - 8 V 2800 A - 60 V W8 600 x 730 x 2500 mm 705 kg

(Example of configurations, other solutions available)
